FEATURES
§ Special lengthened preheating can make perfect fusing of the cuts in lower temperature, thus reducing the color deviation of the cloths in high-temperature fusing, and not affecting the feel of the cloths.
§ It uses the temperature controller with PID, the high-tech digital display
§ The pneumatic pressure control can ensure the accurate pressure.
§ Twelve groups of special heating devices can minimize the temperature difference.
§ The finished fused cloth will be cooled by the powerful suction fan at the exit of the conveyer, to strengthen the fusing.
§ The cleaning device can clean the Teflon belt in operation, to keep the belt clean.
§ The special cloth separating device can make the operation smooth.
§ The lengthened feeding area can have several operators to do the fusing, so as to improve the productivity.
§ Movable rollers are installed at the bottom of the machine, making it easy to handle.

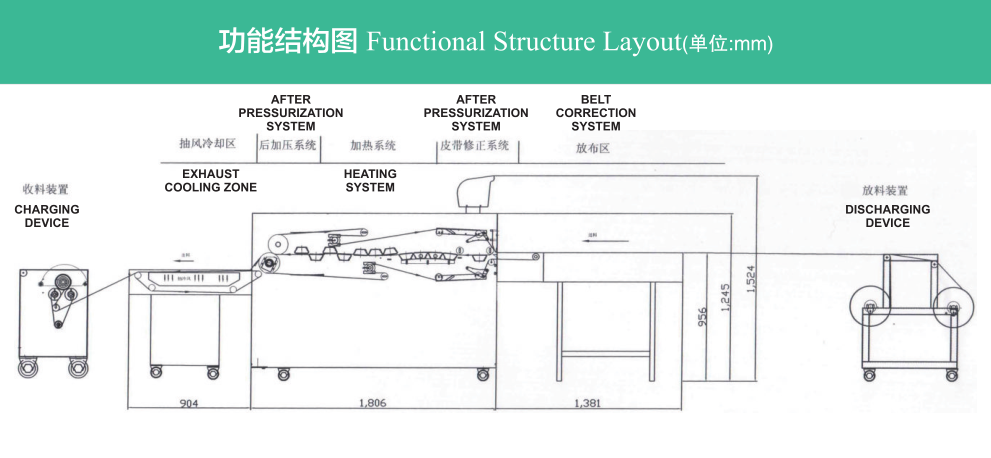

TF-1650L Functional Structure Layout
TF-SSL Automatic admission feeding device(optional)
Specification
Model | TF-1000L | TF-1650L |
| Power supply | 3P/380V | |
| Motor(W) | 1200 | |
| Power(KW) | 21.6 | 33.6 |
| Maximum pressure | 4 | |
| Set temperature | 常溫-200℃ | |
| Fusing Width(mm) | 1000 | 1650 |
| Fusing Time(sec) | 10-34 | |
| Cloth scraper | 標(biāo)準(zhǔn)刮片 Standard Strip-off | |
| Machine size LxWxH(mm) | 4100x1550x1450mm | 4100x2200x1450mm |
| Packing size LxWxH(mm) | 3490x1780x1720mm | 3490x2430x1720mm |
| N.W / G.W | 950/1150kgs | 1150/1400kgs |
